Loading Spouts
Applications
-
Loading dry, dusty bulk solids into tankers, railcars, trucks, stockpiles, and ships.
-
Suitable for dust-sensitive environments and closed systems.
-
Used in industries requiring clean, efficient material transfer.
Advantages
-
Ensures dust-free and environmentally safe loading process.
-
Minimizes material loss and contamination.
-
Easy to install with pre-assembled units, reducing downtime.
Features
-
Telescopic loading spouts with sealing and closure cones to prevent dust spillage.
-
Electric winch with limit switches and emergency sensors for safe operation.
-
Level switches (rotary, vibrating, capacitance) to control filling levels precisely.

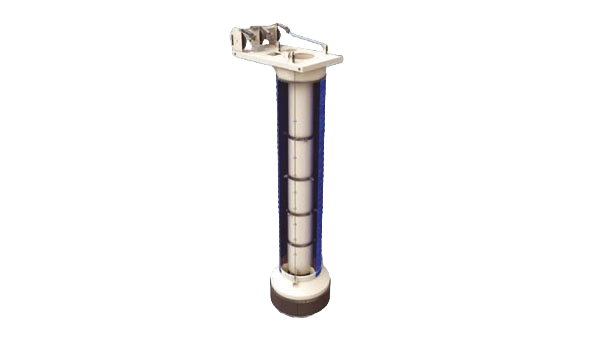

TANKER LOADING SPOUTS
These telescopic loading spouts are designed to load dry, dusty products into silo tankers and closed railcars or containers.
TANKER LOADING BELLOWS BENEFITS
-
sealing cone for perfect tanker sealing
-
closure cone to prevent any spillage of dust as the loading spout is being raised
-
level switch indicating when the tanker is full
-
electric winch with limit switches and emergency sensors
-
three cable lifting system
-
unit comes fully or partly pre-assembled
MAIN TECHNICAL FEATURES
-
max. flow rate: up to 200-250 m3/h (based on the model)
-
level switch: rotary / vibrating / capacitance
-
operating conditions: -40/+80°C (other per request)
-
loading conduit: cones/single bellows, cones/double bellows
-
dedusting: spouts with built-in dust collectors / external filtration / connection to existing dedusting technology
ACCESSORIES
-
electric control box (plastic or stainless steel)
-
pendant or remote control
-
vibration unit to shake off the rest of the product from the equipment
-
shut-off valves (manual, pneumatically and electrically driven)
-
ATEX design
TRUCK/RAILCAR LOADING SPOUTS
These telescopic loading spouts are designed for the efficient dust-free loading of dry, dusty bulk solids into trucks and railcars.
TRUCK/RAILCAR LOADING BELLOWS BENEFITS
-
dust-free loading secured by the outer dedusting bellows
-
bottom part with dustproof skirt with inner level switch automatically stepping the skirt
-
electric winch with limit switches and emergency sensors
-
three cable lifting system
-
unit comes fully or partly pre-assembled
MAIN TECHNICAL FEATURES
-
max. flow rate: 800 m3/h (based on the model)
-
level switch: rotary / vibrating
-
operating conditions: -40/+80 °C (other per request)
-
loading conduit: cones / single bellows, telescopic tubes / single bellows
ACCESSORIES
-
electric control box (plastic or stainless steel)
-
pendant or remote control
-
vibration unit to shake off the rest of the product from the equipment
-
shut-off valves (manual, pneumatically and electrically driven)
-
ATEX design
STOCKPILE LOADING SPOUTS
These telescopic loading spouts are designed for the efficient dust-free loading of dry, dusty bulk solids on stockpiles.
STOCKPILE LOADING BELLOWS BENEFITS
-
robust design and construction – you will not destroy this device!
-
bottom part with dustproof skirt with inner level switch automatically stepping the skirt
-
electric winch with limit switches and emergency sensors
-
three cable lifting system
-
particle size up to 500 mm
MAIN TECHNICAL FEATURES
-
max. flow rate: 800 m3/h (based on the model)
-
level switch: rotary / vibrating
-
operating conditions: -40/+80 °C (other per request)
-
loading conduit: cones / single bellows, telescopic tubes / single bellows
ACCESSORIES
-
electric control box (plastic or stainless steel)
-
external dust collector
-
maintenance platform
-
inlet hoppers
-
ATEX design
SHIP LOADING SPOUTS
The Shiploader telescopic loading spout allows high-capacity ship loading.
MAIN TECHNICAL FEATURES
-
max. flow rate: 4000 m3/h (based on the model)
-
level switch: rotary / tilt
-
operating conditions: -20/+80°C (other per request)
-
loading conduit: tubes/single bellows, tubes
ACCESSORIES
-
electric control box (plastic or stainless steel)
-
pivot gimbals (movable in one or two axis)
-
protection cages
-
load cells to control the spout would not be overloaded
-
ATEX design

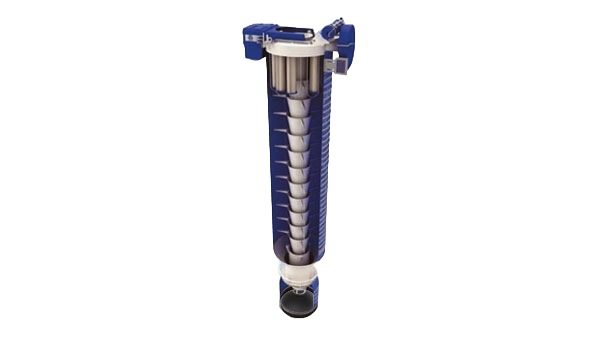

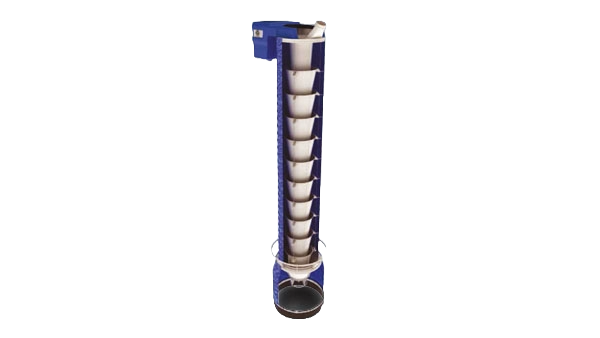

COMBINED LOADING SPOUTS
NZK telescopic loading spouts are designed for the efficient dust-free loading of dry, dusty bulk solids into both tankers and open vehicles or railcars.
COMBINED LOADING BELLOWS BENEFITS
-
2 loading spout combined in 1
-
dust-free loading secured by the dustproof skirt with inner level switch automatically stepping the skirt
-
bottom cone for the perfect sealing on the tanker opening
-
three cable lifting system
-
unit comes fully or partly pre-assembled
MAIN TECHNICAL FEATURES
-
max. flow rate: 100-200 m3/h (based on the model)
-
level switch: rotary / vibrating / capacitance
-
operating conditions: -40/+80°C (other per request)
-
loading conduit: cones/single bellows, cones/double bellows
ACCESSORIES
-
electric control box (plastic or stainless steel)
-
pendant or remote control
-
vibration unit to shake off the rest of the product from the equipment
-
shut-off valves (manual, pneumatically and electrically driven)
-
ATEX design
